Steel Conduits, Conduit Fittings and Accessories
Type Tested to BS, BSEN & IEC Standards (IP Code)
BSEN 60529:2004, BSEN 60670-1:2005, BSEN 61386-1:2004,
IEC 60529:1989, IEC 60670-1:2002 & IEC 61386-1:2008
Certified to ISO 9001:2008 and ISO 14004:2004 with BSI Test Certificates.

Test
Temperature		 -25C to +90C Operation
Temperature		 -25C to +200C

Making Non-Flame-Progagation Conduit may be
of any colour except Yellow, Orange or Red		 Ingress
Protection		 IP54, IP67

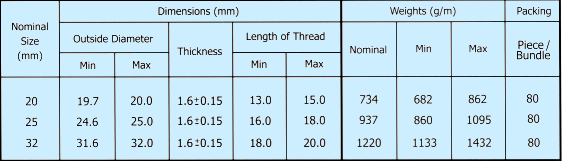

Hot Dip Galvanised Steel Conduits (Very Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)(IP67)		 Size Cat. No. Pieces /
Bundies
20mm G-WM 20 80
25mm G-WM 25 80
32mm G-WM 32 80

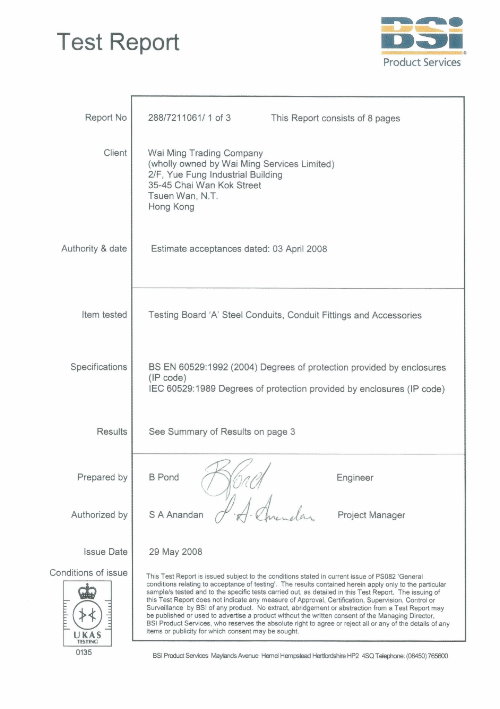

Download Test Certificate

* Type tested to all of the Following International Standards:
   BS,BSEN & IEC Standards (IP Code)
   BSEN 60529:2004
   BSEN 61386-1:2004
   IEC 60529:1989
   IEC 61386-1:2008
* Hot Dip Galvanised (Very Heavy Protection), Both Inside and Outside.
* Both Ends Threaded with One Coupler and Protected with Plastic Cap at the Other End.
* Standard Length is 3.75 metres (300 Metres / Bundle).


Hot Dip Galvanised Steel Conduits (Very Heavy Gauge)
BS, BSEN/IEC 60529 AND BSEN/IEC 61386-1
Suitable for Outdoor used (IP67)		 Size Cat. No. Pieces /
Bundies
1.5" G-WM 38 24
2" G-WM 50 24

   BS. 31-1940 Amendment No.5, Class 4
* Hot Dip Galvanised (Very Heavy Protection), both inside and outside.
* Both Ends Threaded According to BS.31 and Protected with Plastic Cap.
* Standard Length is 3.75 metres.


Conduit Fittings & Accessories Type Tested to BS, BSEN & Standards (IP Code)
BSEN 60529:2004, BSEN 60670-1:2005, BSEN 61386-1:2004,
IEC 60529:1989, IEC 60670-1:2002 & IEC 61386-1:2008 with BSI Test Certificates.

Hot Dip Galvanised Solided Coupler (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) Outdoor used (IP54)(IP67)		 Size Cat. No. Qty/Box
20mm C20 1000
25mm C25 500
32mm C32 400
1.5" C38 200
2" C50 100


Hot Dip Galvanised Flanged Coupler with Male Bush,
Rubber Washer & Lead Washer (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP67)		 Size Cat. No. Qty/Box
20mm FC20 400
25mm FC25 200
32mm FC32 100

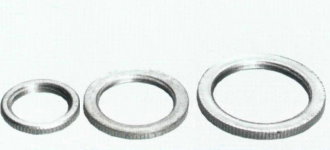

Pre-Galvanised Steel Round Milled Edge Locknuts
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30)		 Size Cat. No. Qty/Box
20mm RL20 2500
25mm RL25 1500
32mm RL32 1000


Hot Dip Galvanised Hexagonal Locknut (Light Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm x 3mm X20L 2000
25mm x 3mm X25L 1200
32mm x 3mm X32L 800
1.5" x 3mm X38L 500
2" x 3mm X50L 500

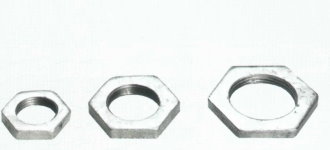

Hot Dip Galvanised Hexagonal Locknut (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm x 6mm X20H 1000
25mm x 6mm X25H 600
32mm x 6mm X32H 400
1.5" x 6mm X38H 200
2" x 6mm X50H 200


Hot Dip Galvanised Switch & Socket Box
1-Gang & 2-Gang (Heavy Gauge)
BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22
Suitable for Indoor used (IP20)		 Size Cat. No. Qty/Box
35mm Deep K135 200
47mm Deep K147 200
47mm Deep
(20/25mm Knockout)		 K147S 200
47mm Deep
(20/25mm Knockout)		 K247 100


Hot Dip Galvanised Cable Entry Box
For MCB Board (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable For Indoor used (IP30)		 Size Cat. No. Qty/Box
200x150x60mm K175S 40
225x150x75mm K175 25


Pre-Galvanised Spacer Bar Saddles
c/w Steel / Brass Screws (Light Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30)		 Size Cat. No. Qty/Box
20mm SB20 1000
25mm SB25 1000
32mm SB32 500


Hot Dip Galvanised Saddles Cast Iron
c/w Steel / Brass Screws (Heavy Gauge)
BSEN/IEC 60529 and BSEN IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP67)		 Size Cat. No. Qty/Box
20mm S20 500
25mm S25 400
32mm S32 250
1.5" S38 200
2" S50 150


For Indoor Applications the Enclosure shall have an Ingress Protection (IP)
In Accordance with BSEN/IEC 60529 of at Least IP40,
for Top Surface and IP30 for Other Surface of the Enclosure,
for Outdoor Applications the Enclosure shall be of at Least IP54.


Hot Dip Galvanised Surface Switch & Socket Box
1-Gang & 2-Gang Cast Iron (Heavy Gauge)
BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
41mm Deep U20 50
41mm Deep U220 40


Hot Dip Galvanised Pedestal Box
1-Gang & 2-Gang Cast Iron (Heavy Gauge)
BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
27/56mm Deep P20 50
P220 40


Hot Dip Galvanised Adaptable Box
Cast Iron without Cover (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
75x75x50mm A75 50
100x100x50mm A100 40
100x100x75mm A100S 20
150x150x75mm A150 10
225x225x75mm A225 5
300x300x75mm A300 5


Hot Dip Galvanised Adaptable Box
Cast Iron (Extension Frame) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
100x100x50mm EF100 40
150x150x75mm EF150 10
225x225x75mm EF225 5


Hot Dip Galvanised Watertight Adaptable Box Cast Iron
with cover,Rubber Gasket Seal & Stainless
Steel Screws (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP67)		 Size Cat. No. Qty/Box
100x100x75mm WT-A100S 10


Hot Dip Galvanised Watertight Adaptable Box Cast
Iron with cover, Rubber Gasket Seal & Stainless Steel
Screws(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP67)		 Size Cat. No. Qty/Box
150x150x75mm WT-A150 6
225x225x75mm WT-A225 2
300x300x150mm WT-A300S 1


Hot Dip Galvanised Standard Circular Box
Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm T01 100
25mm T01S 100
20mm T02 100
25mm T02S 100
20mm T2A 100
25mm T2AS 100
20mm T03 100
25mm T03S 100
20mm T04 100
25mm T04S 100


Hot Dip Galvanised Standard Circular Box
Malleable Iron (Special Shape) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm TOU 100
25mm TOUS 100
20mm TTT 100
25mm TTTS 100
20mm TTA 100
25mm TTAS 100
20mm TOT 100
25mm TOTS 100
20mm TOY 100
25mm TOYS 100
20mm T0H 100
25mm T0HS 100


Hot Dip Galvanised Standard Circular Box
Malleable Iron (Extension Frame) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm EB01 100
20mm EB02 100
20mm EB2A 100
20mm EB03 100
20mm EB04 100


Hot Dip Galvanised Besa Deep Circular Box
Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm H01 50
20mm H02 50
20mm H2A 50
20mm H03 50
20mm H04 50


Hot Dip Galvanised Standard Circular Box
Malleable Iron (Black Outlet) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm B0 100
25mm B0S 100
20mm B01 50
25mm B01S 50
20mm B02 50
25mm B02S 50
20mm B2A 50
25mm B2AS 50
20mm B03 50
25mm B03S 50
20mm B04 50
25mm B04S 50


Hot Dip Galvanised Standard Circular Box
Malleable Iron (Large) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
32mm T01L 50
32mm T02L 50
32mm T2AL 50
32mm T03L 40
32mm T04L 40

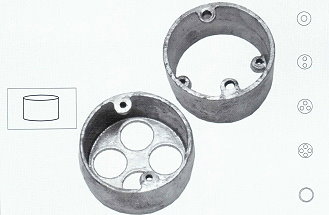

Hot Dip Galvanised Looping-In Box & Extension Ring
Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm L01 100
20mm L02 100
20mm L03 100
20mm L04 100
38mm Deep EXR 100


Hot Dip Galvanised Dome Cover
Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm D20 200
25mm D25 200


Hot Dip Galvanised Dome Cover
Base Plate Cast Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
- DP20 200


Brass Male Bush Short (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm B20L 2000
25mm B25L 1000
32mm B32L 500
1.5" B38L 300
2" B50L 200


Brass Male Bush Heavy (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm B20H 2000
25mm B25H 1000
32mm B32H 500
1.5" B38H 300
2" B50H 200


Brass Female Bush Heavy (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Indoor used (IP30) / Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm E20 2000
25mm E25 2000
32mm E32 1000


Watertight Brass Male Bush
with Rubber Washer Heavy (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP67)		 Size Cat. No. Qty/Box
20mm WB20H 400
25mm WB25H 200
32mm WB32H 100


1-Part Brass Flexible Conduits Adaptors (Heavy Gauge) to BS 731 Part 1:1952
BSNE 60529:2004, BSEN 61386-1:2004, IEC 60529:1989 and IEC 61386-1:2008
Suitable for Indoor used (IP40)


Brass Male Adaptors (Heavy Gauge) Size Cat. No. Qty/Box
20 x 16mm M21 1000
20 x 20mm M20 1000
25 x 25mm M25 400
32 x 32mm M32 200
1.5" x 1.5" M38 100
2" x 2" M50 100


Brass Female Adaptors (Heavy Gauge) Size Cat. No. Qty/Box
20 x 16mm F21 1000
20 x 20mm F20 1000
25 x 25mm F25 400
32 x 32mm F32 200
1.5" x 1.5" F38 100
2" x 2" F50 100


Nickel Plated 2-Part Brass Flexible Conduits Adaptors (Heavy Gauge) to BS 731 Part:1952,
BSNE 60529:2004, BSEN 61386-1:2004, IEC 60529:1989 and IEC 61386-1:2008 with BSI Test Certificates.
Suitable for Outdoor used (IP54)


Nickel Plated 2-Part
Brass Male Adaptors (Heavy Gauge)		 Size Cat. No. Qty/Box
20 x 16mm NM21 500
20 x 20mm NM20 500
25 x 25mm NM25 400
32 x 32mm NM32 200
1.5" x 1.5" NM38 100
2" x 2" NM50 50


Nickel Plated 2-Part
Brass Female Adaptors (Heavy Gauge)		 Size Cat. No. Qty/Box
20 x 16mm NF21 500
20 x 20mm NF20 500
25 x 25mm NF25 400
32 x 32mm NF32 200
1.5" x 1.5" NF38 100
2" x 2" NF50 50


Watertight Nickel Plated 2-Part Brass Flexible Conduits Adaptors with Inner and
Outer Rubber Gasket Seal. (Heavy Gauge) to BS 731 Part 1:1952,
BSEN 60529:2004, BSEN 61386-1:2004,
IEC 60529:1989 and IEC 61386-1:2008 with BSI Test Certificates.
Suitable for Outdoor used (IP67)


Watertight Nickel Plated 2-Part
Brass Male Adaptors (Heavy Gauge)		 Size Cat. No. Qty/Box
20 x 16mm E1W-M21 120
20 x 20mm E1W-M20 120
25 x 25mm E1W-M25 80
32 x 32mm E1W-M32 60
1.5" x 1.5" E1W-M38 20
2" x 2" E1W-M50 20


Watertight Nickel Plated 2-Part
Brass Female Adaptors (Heavy Gauge)		 Size Cat. No. Qty/Box
20 x 16mm E1W-F21 120
20 x 20mm E1W-F20 120
25 x 25mm E1W-F25 80
32 x 32mm E1W-F32 60
1.5" x 1.5" E1W-F38 20
2" x 2" E1W-F50 20

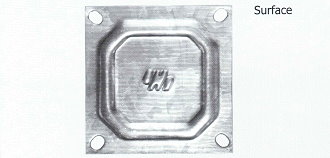

Hot Dip Galvanised Cover for Circular Box and
Adaptable Box c/w Steel / Brass / Stainless Steel Screws
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)		 Size Cat. No. Qty/Box
69mmØ TC65 600
75 x 75mm KV75 400
75 x 75mm V75 400
100 x 100mm V100 200
150 x 150mm V150 100
225 x 225mm V225 40
300 x 300mm V300 30
86mmØ TC86 400
86 x 86mm KV86 300
>75 x 75mm V75F 200
>100 x 100mm V100F 100
>150 x 150mm V150F 50
>225 x 225mm V225F 40
>300 x 300mm V300F 20


Hot Dip Galvanised Watertight Cover for Circular Box and
Adaptable Box c/w Rubber Gasket & Brass or Stainless
Steel Screws (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
69mmØ WTC65 300
75 x 75mm WKV75 200
75 x 75mm WT75 200
100 x 100mm WT100 100
150 x 150mm WT150 50
225 x 225mm WT225 20
300 x 300mm WT300 10
86mmØ WTC86 200
86 x 86mm WKV86 200
>75 x 75mm WT75F 100
>100 x 100mm WT100F 50
>150 x 150mm WT150F 20
>225 x 225mm WT225F 10
>300 x 300mm WT300F 10


Pre-Galvanised Adaptable Pressed Steel Box
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP40)		 Size Cat. No. Qty/Box
75x75x50mm AP75 50
100x100x50mm AP100 40
100x100x75mm AP100S 20
150x150x75mm AP150 10
225x225x75mm AP225 5
300x300x75mm AP300 5


Switch & Socket Box Pre-galvanised 1-Gang & 2-Gang
BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22
Suitable for Indoor used (IP20)		 Size Cat. No. Qty/Box
25mm Deep KG125 200
35mm Deep KG135 200
47mm Deep KG147 200
47mm Deep KG147S 200
25mm Deep KG225 100
35mm Deep KG235 100
47mm Deep KG247 100


Switch & Socket Box (Extension Frame)
Pre-galvanised 1-Gang & 2-Gang
BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22
Suitable for Indoor used (IP20)		 Size Cat. No. Qty/Box
16mm Deep KF116 200
KF216 100
25mm Deep KF125 200
KF225 100


Hot Dip Galvanised Steel Normal Bend
(Internal Thread) (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm NB20 40
25mm NB25 30
32mm NB32 20
1.5" NB38 10
2" NB50 10


Hot Dip Galvanised Elbow Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZE20 200
25mm ZE25 100


Hot Dip Galvanised Bend Malleable Iron (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZB20 200
25mm ZB25 100


Hot Dip Galvanised Tee Malleable Iron
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZT20 200
25mm ZT25 100


Hot Dip Galvanised Inspection Elbow Malleable Iron
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZIE20 200
25mm ZIE25 100


Hot Dip Galvanised Inspection Bend Malleable Iron
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZIB20 200
25mm ZIB25 100


Hot Dip Galvanised Inspection Tee Malleable Iron
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm ZIT20 200
25mm ZIT25 100


Pre-Galvanised Steel Nipple (Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 61386-1
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
20mm NP20S 1000
25mm NP25S 500
32mm NP32S 400


Pre-Galvanised Cover for Crcular Box and
Adaptable Box c/w Steel / Brass / Stainless Steel Screws
(Heavy Gauge)
BSEN/IEC 60529 and BSEN/IEC 60670-1
Suitable for Indoor used (IP30)		 Size Cat. No. Qty/Box
69mmØ TCP65 600
75 x 75mm KVP75 400
75 x 75mm VP75 400
100 x 100mm VP100 200
150 x 150mm VP150 100
225 x 225mm VP225 40
300 x 300mm VP300 30
86mmØ TCP86 400
86 x 86mm KVP86 300
>75 x 75mm VP75F 200
>100 x 100mm VP100F 100
>150 x 150mm VP150F 50
>225 x 225mm VP220F 40
>300 x 300mm VP300F 20

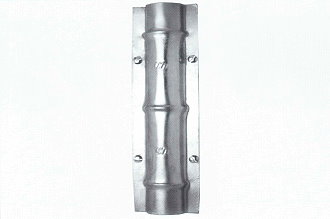

Hot Dip Galvanised Cable Sleeve (Heavy Gauge)
BS 18, BSEN ISO 1461 and BSEN/IEC 60529
Suitable for Outdoor used (IP54)		 Size Cat. No. Qty/Box
Ø2"x14"x1.2mm CS50 40
Ø3"x14"x1.2mm CS75 30
Ø4"x14"x1.2mm CS100 25
Ø7x14"x1.5mm CS180 15






  T1 - BSI Test Reports No.288/7211061/1 of 3
 Ingress of Protection (IP Code)




  T1 - BSI Test Reports No.288/7211061/1 of 3
 Ingress of Protection (IP Code)




  T2 - BSI Test Reports No.286/7286447/1 of 3
 The latest issue for the BSEN 61386-1 is 2004 and IEC 61386-1:2008




  T2 - BSI Test Reports No.286/7286447/1 of 3
 The latest issue for the BSEN 61386-1 is 2004 and IEC 61386-1:2008
