.:: SUPERFLEX steel flexible conduits ::.

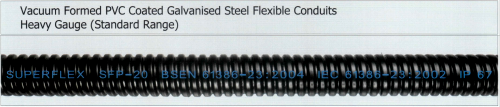

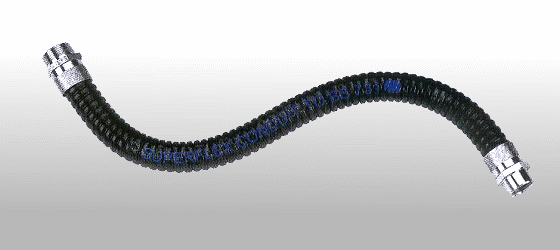

 Vacuum Formed PVC Coated Galvanised Steel Flexible Conduits to BS 731 Part 1:1952,
 BS4066 Part 1:1980, BS6469:Section 1.1:1992, BS6746:1990,
 BSEN 60529:2004, BSEN 61386-23:2004,
 IEC 60529:1989 and IEC 61386-23:2002 with BSI Test Certificates.
Suitable for Outdoor used (IP54, IP67)


Test
Temperature		 -25C to +90C Operation
Temperature		 -25C to +90C

Colour Black Ingress
Protection		 IP54, IP67




Construction :

A Close Fitting PVC Coating that will not Slide on the Galvanised Steel Flexible Conduit is Formed by Extrusion.
Application :

Highly Flexible with Protection Against Ingress of Solid Particles and Most Common Liquids.
Heavy Gauge (Standard Range)
Cat. No. Internal Dia Bending Radius Coil Length
SFP-16 16mm 45mm 30 meters
SFP-20 20mm 55mm 30 meters
SFP-25 25mm 70mm 30 meters
SFP-32 32mm 110mm 30 meters
SFP-40 40mm 150mm 15 meters
SFP-50 50mm 190mm 15 meters

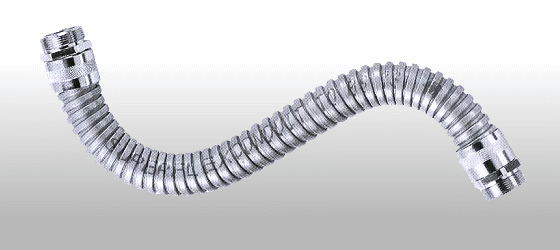

 Galvanised Steel Flexible conduits to BS 731 Part 1:1952,
 BSEN 60529:2004, BSEN 61386-23:2004,
 IEC 60529:1989 and IEC 61386-23:2002 with BSI Test Certificates.
 Suitable for Indoor used (IP40)


Test
Temperature		 -25C to +90C Operation
Temperature		 -25C to +200C

Colour Self-colour Ingress
Protection		 IP40



Construction :

Galvanised Steel Flexible Conduit is Square Locked Type and Helically Wound from Electro-Galvanised Steel Strip.
Application :

Widely used for General Electrical Wiring where Flexibility and Mechanical Protection are Required.
Heavy Gauge (Standard Range)
Cat. No. Internal Dia Bending Radius Coil Length
SFB-16 16mm 45mm 30 meters
SFB-20 20mm 55mm 30 meters
SFB-25 25mm 70mm 30 meters
SFB-32 32mm 110mm 30 meters
SFB-40 40mm 150mm 15 meters
SFB-50 50mm 190mm 15 meters

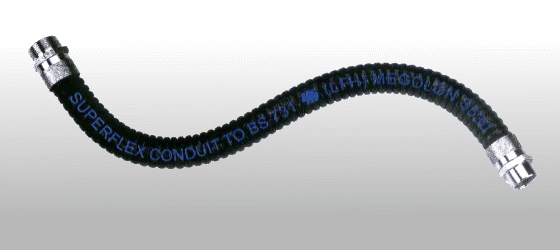

 Vacuum Formed LFH PVC Coated Galvanised Steel Flexible Conduits to BS 731 Part 1:1952,
 BS 6425 Part 1:1990, IEC 60754-1:1994,
 BSEN 60529:2004, BSEN 61386-23:2004,
 IEC 60529:1989 and IEC 61386-23:2002 with BSI Test Certificates.
 Suitable for Outdoor used (IP54, IP67)


Test
Temperature		 -25C to +90C Operation
Temperature		 -25C to +90C

Colour Black Ingress
Protection		 IP54, IP67



Construction :

A Uniform Coating of Low Fire Hazard Material (Megolon S530 Compounds which are Halogen Free and the Halogen Acid Evolution Ozone Resistance is Zero to BS 6425:Part 1:1990, IEC 60754-1:1994) is Extruded onto Galvanised Steel Flexible Conduits to BS 731: Part 1:1952, BSEN 61386-23:2004 and IEC 61386-23:2002
Application :

Low Fire Hazard Coated Flexible Conduits is Recommended for use where People or Equipment are at Risk if a Fire should Occur. Typical Application Areas Such as: Hospitals, Public and Commercial Buildings, Underground Transport System, Theatres, Tunnel and Airport.
Heavy Gauge (Standard Range)
Cat. No. Internal Dia Bending Radius Coil Length
LFH-16 16mm 45mm 30 meters
LFH-20 20mm 55mm 30 meters
LFH-25 25mm 70mm 30 meters
LFH-32 32mm 110mm 30 meters
LFH-40 40mm 150mm 15 meters
LFH-50 50mm 190mm 15 meters


 1-Part Brass Flexible Conduits Adaptors (Heavy Gauge) to BS 731 Part 1:1952
 BSNE 60529:2004, BSEN 61386-1:2004, IEC 60529:1989 and IEC 61386-1:2008
 Suitable for Indoor used (IP40)

Brass Male Adaptors (Heavy Gauge) Size Cat No. Qty/Box
20 x 16mm M21 1000
20 x 20mm M20 1000
25 x 25mm M25 400
32 x 32mm M32 200
1.5" x 1.5" M38 100
2" x 2" M50 100

Brass Female Adaptors (Heavy Gauge) Size Cat No. Qty/Box
20 x 16mm F21 1000
20 x 20mm F20 1000
25 x 25mm F25 400
32 x 32mm F32 200
1.5" x 1.5" F38 100
2" x 2" F50 100

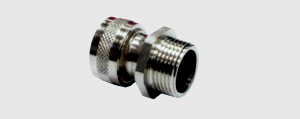

 Nickel Plated 2-Part Brass Flexible Conduits Adaptors (Heavy Gauge) to BS 731 Part:1952,
 BSEN 60529:2004, BSEN 61386-1:2004, IEC 60529:1989 and IEC 61386-1:2008 with BSI Test Certificates.
 Suitable for Outdoor used (IP54)

Nickel Plated 2-Part
Brass Male Adaptors (Heavy Gauge)		 Size Cat No. Qty/Box
20 x 16mm NM21 500
20 x 20mm NM20 500
25 x 25mm NM25 400
32 x 32mm NM32 200
1.5" x 1.5" NM38 100
2" x 2" NM50 50

Nickel Plated 2-Part
Brass Female Adaptors (Heavy Gauge)		 Size Cat No. Qty/Box
20 x 16mm NF21 500
20 x 20mm NF20 500
25 x 25mm NF25 400
32 x 32mm NF32 200
1.5" x 1.5" NF38 100
2" x 2" NF50 50


 Watertight Nickel Plated 2-Part Brass Flexible Conduits Adaptors with Inner and
 Outer Rubber Gasket Seal. (Heavy Gauge) to BS731 Part 1:1952,
 BSEN 60529:2004, BSEN 61386-1:2004,
 IEC 60529:1989 and IEC 61386-1:2008 with BSI Test Certificates.
 Suitable for Outdoor used (IP67)

Watertight Nickel Plated 2-Part
Brass Male Adaptors (Heavy Gauge)		 Size Cat No. Qty/Box
20 x 16mm E1W-M21 120
20 x 20mm E1W-M20 120
25 x 25mm E1W-M25 80
32 x 32mm E1W-M32 60
1.5" x 1.5" E1W-M38 20
2" x 2" E1W-M50 20

Watertight Nickel Plated 2-Part
Brass Female Adaptors (Heavy Gauge)		 Size Cat No. Qty/Box
20 x 16mm E1W-F21 120
20 x 20mm E1W-F20 120
25 x 25mm E1W-F25 80
32 x 32mm E1W-F32 60
1.5" x 1.5" E1W-F38 20
2" x 2" E1W-F50 20




 T1-BSI Test Reports No. 286/4667147
 (C2: Flexible for Galv. Steel Conduit, PVC Coated)



 T1-BSI Test Reports No. 286/4667147
 (C3: Flexible for Galv. PVC-LFH Coated Pliable Steel Conduit)



 T1-BSI Test Reports No. 286/4667147
 (C4: IP54, IP67 Connector for Nickel Plated 2-Part Male & Female Conduit Adaptors)



 T1-BSI Test Reports No. 286/4667147
 (C2: Flexible for Galv. Steel Conduit, PVC Coated)
 (C3: Flexible for Gav. PVC-LFH Coated Pliable Steel Conduit)
 (C4: IP54, IP67 Connector for Nickel Plated 2-Part Male & Female Conduit Adaptors)



 T2-BSI Test Reports No. 286/7286447/3 of 3
 (C2: Flexible for Galv. Steel Conduit, PVC Coated)
 (C3: Flexible for Galv. PVC-LFH Coated Pliable Steel Conduit)



 T2-BSI Test Reports No. 286/7286447/3 of 3
 (C2: Flexible for Galv. Steel Conduit, PVC Coated)
 (C3: Flexible for Galv. PVC-LFH Coated Pliable Steel Conduit)
